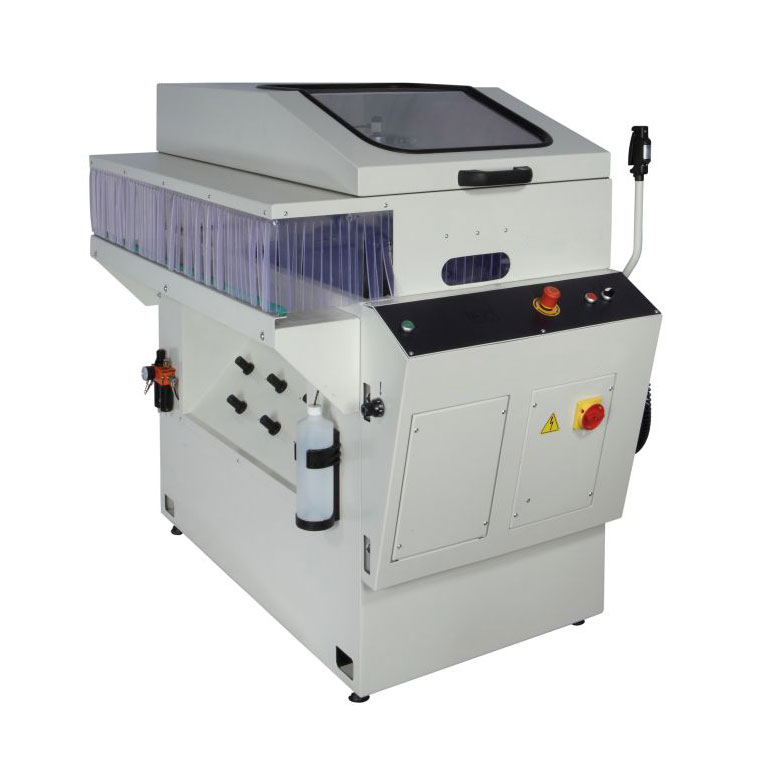

AFV570 Variable Angle End Miller

For Aluminium and Vinyl/PVC Profiles
Description:
Large capacity end milling machine comes with manual or automatic feed of Milling head, Max cutter diameter 280mm, variable angle milling fence rotates from 45-90-45 degrees, 6 position revolving depth stop, vertical and horizontal pneumatic clamping, mist spray device for coolant, quick change arbour. Plus service tools and instruction manual. CE Mark.
Optional:
- Semi-Automatic version
- Increase profile height to 160mm
Technical Data:
- Dia. cutter bore 32 mm
- Max. cutter dia. 280 mm
- Horizontal Stroke 400 mm
- Optional Cutter Speed 7000 rpm
- Direction Clockwise
- Voltage: 380-415v, 3~, 50 Hz
- Compressed Air: 7 bar, 100 psi
- Dimensions (length, width, height): 970 x 670 x 1210 mm
- Weight: 165 Kg
