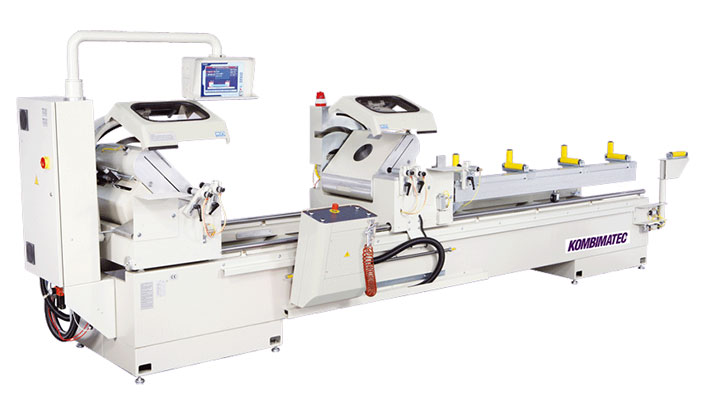

DGS550 Double Mitre Saw
For Aluminium and Vinyl/PVC Profiles
Description:
DGS550 Electronic Double Mitre Saw With 550mm dia. TCT saw blades Automatic positioning with touch screen colour monitor, USB port for cutting list, 4000 mm max. cutting length, Extended cut routine for >4000mm, automatic tilting saw heads, adjustable angles 90-45 degrees, pneumatic clamping, 2 hand safety control, safety guards, service spanners, Instruction Manual. CE Mark.
Features:
- Cutting lists can be downloaded via USB port.
- Driver ensure compatibility with internal/office software
- Extended cut routine means production can cope with unusually large piece.
- Overhead Control screen means its safe during profile loading and unloading and easy to see during operation.
- Test inputs and outputs feature enables simple and speedy diagnostics.
- Trim cut facility automates cutting of same size pieces (eg: cleats.)
Technical Data:
- Voltage: 415 volts, 3~, 50 Hz
- Compressed Air: 7 bar, 100 psi
- Dimensions (length, width, height):
- 4m Version 5330x1390x1960mm, 1200 Kgs
- 5m Version 6330x1390x1960mm, 1350 Kgs
- 6m Version 7330x1390x1960mm, 1500 Kgs
Versions:
- DGS550 Electronic Double Mitre Saw - heads tilt 45 to 90 degrees
- DGS552 Electronic Double Mitre Saw - heads tilt 22,5 to 90 degrees
- DGS554 Electronic Double Mitre Saw - heads tilt 45 to 90 to - 45 degrees
- DGS555 Electronic Double Mitre Saw - 3 axes - heads tilt 22.5 to 90 degrees
- DGS556 Electronic Double Mitre Saw - 3 axes - heads tilt 22.5 to 90 to -45 degrees
